# Legacy JSON controller
**❗ IMPORTANT**\
This page documents the **legacy** JSON controller (the Qt/C++ `CSVFileReaderHandler` registered as **General > JSON** and **Sports > JSON**). It is retained so existing projects continue to open. For new projects, use [Tables](/play-and-update-graphics/chapter-index-1/tables-overview.md) — the unified Tables controller reads JSON via **Browse** or **Open URL** in **Load New Data** and is the supported path forward. The legacy JSON menu entry may be removed in a future release.
Captivate can display data from incoming JSON feeds, such as Scoreboard OCR and other sources that write real-time data to JSON files. This data can be assigned to design elements such as text and updated in real time.
## Add a legacy JSON input
1. In Captivate’s playout interface, open a project (if a project isn’t already open) and select a graphic in the Project List.
**💡 TIP**\
Open the Graphics Library panel and drag a graphic from the library to your channel. To customize existing variables or create new ones, see [Create variables in graphics](/design-and-customize-graphics/chapter-index-4/create-variables-in-graphics.md).
2. Click the **Select a Datasource** cell in the Data Controller column and choose **General** > **JSON** > **New Input** (or **Sports** > **JSON** > **New Input** if a sports-graphic input list is open).
3. A dialog box prompts you to either select a JSON file from your computer or enter a URL that hosts your JSON data.
* Enter the **URL** of the JSON file on your local network or FTP location, or click the **Select file** button and pick a local JSON file.
**💡 TIP**\
**FTP syntax:** The URL form is `ftp://username:password@server.com/path/file.json`. You can also use an IP address after `@` instead of a hostname.

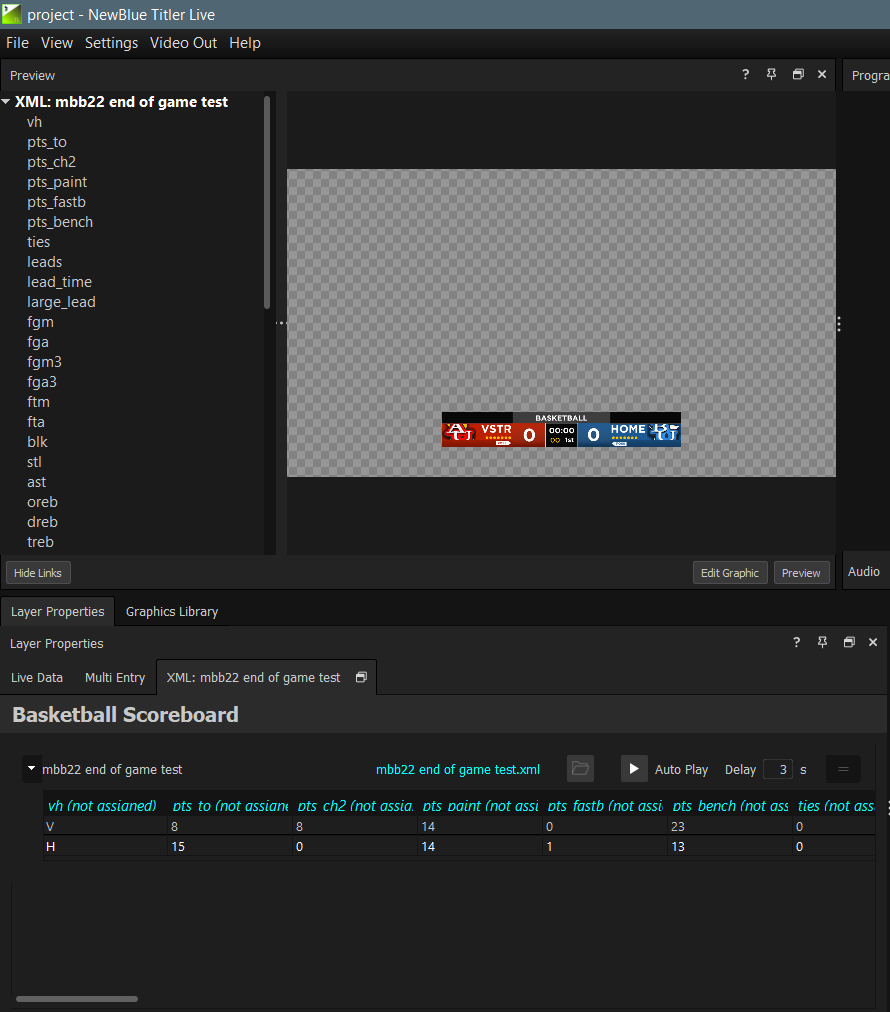

4. The JSON data and its variables appear in the **Link Data** sidebar in the **Preview** panel. Click **Link Data** in the **Preview** panel to view the JSON input and variables.
5. Click and drag a JSON variable onto an object in the graphic. Repeat this step for each variable you want to include in the graphic.
**💡 TIP**\
To disconnect a variable from an object in your graphic, right-click the variable in the **Preview** panel and choose **Disconnect variable**.
The JSON data is now visible in the graphic. Captivate updates the graphic as the underlying data changes.
## How Captivate reads JSON
The legacy JSON handler auto-flattens the document into a table by heuristic. There is no JSONPath, jq, or dotted-key query language — you cannot ask for a specific node by selector.
* An array of objects is read as rows; each object’s fields become columns.
* The parser defaults to **400 keys** maximum and a **max depth of 3**. Heavily nested or oversized documents may not produce the columns you expect.
* If the generated columns are not what you want, reshape the feed upstream (export a flatter JSON) or convert to CSV/XLSX and load through the modern Tables controller.
## Refresh behavior
How Captivate picks up new data depends on the source:
* **Local files** — Captivate watches the file via the OS file-change events and reloads automatically when the file is rewritten.
* **URL / FTP sources** — Captivate fetches once at load. Click the **Refresh** / **Reload** control in the input’s settings to pull a fresh copy, or use the input’s Auto Refresh interval if exposed for that source.
## Migration to the new Tables controller
If you maintain a project that currently uses **General > JSON**, you can switch to [Tables: Row](/play-and-update-graphics/chapter-index-1/drive-a-graphic-with-tables-row.md) or **Tables: Block** without changing the source file: choose **Productivity > Tables: Row > New Input**, click **Browse** to pick the same JSON file, and re-link the variables to your graphic. The Tables grid then exposes column sorting, header context menus, and Auto Refresh that the legacy handler does not.
## See also
* [Legacy data controllers](/play-and-update-graphics/chapter-index-2.md) — chapter overview
* [Tables](/play-and-update-graphics/chapter-index-1/tables-overview.md) — modern Tables controller
* [Legacy XML controller](/play-and-update-graphics/chapter-index-2/legacy-xml-controller.md) — sibling article for XML feeds
---
